Screen Toolkit

A unified collection of screen utilities for the Noctalia Shell, designed to streamline screenshotting, annotation, recording, and visual inspection workflows.

---

Overview

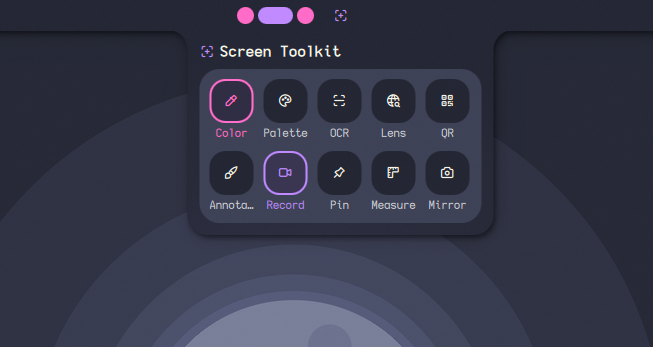

Screen Toolkit provides a single integrated panel for advanced screen interaction tools, including capture, annotation, OCR, recording, and color analysis.

---

Included Tools

Tool	Description
Color Picker	Inspect any pixel and retrieve HEX, RGB, HSV, and HSL values instantly.
Annotate	Draw on screenshots using pens, highlights, arrows, shapes, text, and blur effects.
Measure	Measure precise pixel distances using on-screen line tools. Hold Alt while dragging to constrain to horizontal or vertical axis.
Pin	Pin screenshots or local media as floating overlays on the screen.
Palette Extraction	Extract dominant color palettes from selected regions.
OCR	Extract text from images with multilingual support and translation.
QR Scanner	Detect and decode QR codes and barcodes from screen regions.
Google Lens	Send a selected region to Google Lens for reverse image search.
Screen Recorder	Record fullscreen or selected regions as MP4 or GIF (with optional audio).
Webcam Mirror	Floating webcam preview with resizing, flipping, and capture support.

Color Picker + Annotation

You can use the color picker tool to select any color, and it will be automatically applied to annotations.

Annotation – Shortcuts

• Ctrl + C: Copy current annotation to clipboard and close overlay.

Annotation – Sharing

You can quickly upload screenshots and get a shareable link.

• Default (no setup): uses https://uguu.se/ — links expire after ~3 hours
• Want more control: get a free API key from https://up.x02.me/ to increase upload limits and choose expiry from settings: 1h | 1d | 7d | 30d | permanent (default: 7d).

Recording UI behavior

When recording is active, the plugin icon shows a red pulsing dot. Clicking the icon stops the recording.

Webcam Mirror Features

• Take screenshots from mirror view
• Automatically pin screenshots on screen (pin/unpin button)
• Record video from mirror overlay
• Optional microphone audio recording (on/off)

---

Requirements

Core Dependencies

• grim — screenshots
• slurp — region selection
• wl-clipboard — clipboard integration
• tesseract — OCR engine
• imagemagick — image processing
• zbar — QR/barcode scanning
• curl — network requests
• ffmpeg — video processing
• jq — JSON parsing
• wl-screenrec (preferred) or wf-recorder (fallback)
• python3 + PyGObject (system file picker support)
• xdg-desktop-portal (File picker for Pin Image/Video)

Color Picker

• hyprpicker — primary picker (Hyprland / Niri compatible)
• Zoom lens, live preview, multiple formats
• Fallback: slurp + grim

Optional Features

• translate-shell — OCR translation
• gifski — high-quality GIF encoding
• zenity / kdialog — fallback for Pin Image/Video

---

Installation

Arch Linux

sudo pacman -S grim slurp hyprpicker wl-clipboard tesseract tesseract-data-eng imagemagick zbar curl translate-shell ffmpeg jq python python-gobject xdg-desktop-portal
yay -S gifski wl-screenrec-git

Debian / Ubuntu

sudo apt install grim slurp wl-clipboard tesseract-ocr tesseract-ocr-eng imagemagick zbar-tools curl translate-shell ffmpeg jq python3 python3-gi xdg-desktop-portal
cargo install gifski

Fedora

sudo dnf install grim slurp hyprpicker wl-clipboard tesseract tesseract-langpack-eng ImageMagick zbar curl translate-shell ffmpeg jq wl-screenrec python3 python3-gobject xdg-desktop-portal
cargo install gifski

NixOS

environment.systemPackages = with pkgs; [
  grim slurp hyprpicker wl-clipboard tesseract imagemagick zbar curl
  translate-shell wl-screenrec ffmpeg gifski jq
  python3 python3Packages.pygobject xdg-desktop-portal
];

Optional languages for OCR:

# programs.tesseract.languages = [ "eng" "deu" "fra" ];

---

Structure:

Screen-Toolkit/
├── i18n/
│   ├── en.json
│   ├── fr.json
│   └── tr.json
│
├── scripts/
│   ├── annotate.sh
│   ├── capture.sh
|   ├── color-picker.sh
│   ├── lens-upload.sh
|   ├── measure.sh
|   ├── mirror-record.sh
|   ├── mirror-screenshot.sh
│   ├── ocr.sh
│   ├── pick-file.py
│   ├── pick-file.sh
│   ├── record.sh
│   └── share-upload.sh
├── overlays/
│   ├── Annotate.qml
│   ├── Mirror.qml
│   ├── Record.qml
│   ├── Measure.qml
│   ├── Pin.qml
│   └── RegionSelector.qml
├── tools/
│   ├── ColorPicker.qml
│   ├── Lens.qml
│   ├── Ocr.qml
│   ├── Palette.qml
│   └── Qr.qml
│
├── widgets/
│   ├── ResultColor.qml
│   ├── ResultOcr.qml
│   ├── ResultPalette.qml
│   └── ResultQr.qml
│
├── shaders/
│   ├── dimming.frag
│   └── dimming.frag.qsb
│
├── utils/
│   └── utils.js
│
├── Main.qml
├── BarWidget.qml
├── ControlCenterWidget.qml
├── Panel.qml
├── Settings.qml
├── manifest.json
└── README.md

---

Compatibility

Compositor	Status	Notes
Hyprland	Fully supported	All features enabled
Niri	Fully supported	Active window annotation is disabled (Niri API limitation)
Other Wayland compositors	Partial support	Feature availability may vary

---

Configuration

All settings are configurable via the plugin settings panel.

Setting	Description	Default
Screenshot Path	Directory for screenshots and annotations	~/Pictures/Screenshots
Video Path	Directory for recordings	~/Videos
Filename Format	Timestamp template for generated files	%Y-%m-%d_%H-%M-%S
x0.2 API Key	API key for uploading and sharing captures	—
x0.2 Link Expiry	How long shared links remain valid	7d
Skip Share Popover	Share immediately without confirmation popup	false
Skip Recording Confirmation	Start recording immediately	false
Copy Recording to Clipboard	Copy output after recording	false
GIF Max Seconds	Maximum GIF duration	30
Search Engine URL	URL used when searching OCR text. Leave empty to use Google. Examples: https://duckduckgo.com/?q= or https://search.brave.com/search?q=	Google (default)

Files automatically receive appropriate extensions (.png, .mp4, .gif).

---

IPC Commands

Control Screen Toolkit via scripts or keybindings:

qs -c noctalia-shell ipc call plugin:screen-toolkit <command>

Replace <command> with any of the following:

---

General

Command	Description
toggle	Open or close the main panel

---

Annotation

Command	Description
annotate	Annotate a selected region
annotateFullscreen	Annotate full screen
annotateWindow	Annotate active window (Hyprland only)

---

Pin

Command	Description
pin	Pin a selected region
pinImage	Pin an existing image or video

---

Recording

Command	Description
record	Record region as GIF
recordMp4	Record region as MP4
recordFullscreen	Record fullscreen as GIF
recordFullscreenMp4	Record fullscreen as MP4
recordStop	Stop recording

---

Mirror

Command	Description
mirror	Open webcam mirror (supports capture)

---

Utilities

Command	Description
colorPicker	Pick pixel color
ocr	Extract text via OCR
qr	Scan QR/barcodes
palette	Extract color palette
lens	Send region to Google Lens
measure	Measure screen distances

---

Troubleshooting

File picker does not open (Pin Image/Video)

Ensure:

• xdg-desktop-portal is installed and running
• A fallback picker is available (zenity or kdialog)

---

Recording does not work

Check:

• wl-screenrec or wf-recorder is installed
• Your compositor supports screen capture

---

OCR not working

Ensure:

• tesseract is installed
• Language packs are installed (e.g. tesseract-data-eng)

---

GIF issues

Install:

• gifski for improved encoding quality

---

QR scanner not detecting codes

Ensure:

• zbar is installed
• The region has sufficient contrast and clarity

---

License

MIT License

---

Contributing

Contributions, issues, and feature requests are welcome.

Repository: https://github.com/noctalia-dev/noctalia-plugins
