OBS Control
v1.0.1 ayagmar

About

OBS Control

Start and stop OBS Studio recording, replay buffer and streaming from the bar, a panel, the control center or a keybind, without switching to the OBS window. It replaces the v4 OBS Control plugin.

Plugin

Field Value
ID ayagmar/obs-control
Entries Bar widget: status; panel: controls; service: controller; shortcut: quick-controls

Requirements

Install python3, the Python module websocket-client, obs, pgrep and xdg-open. On Arch Linux:

sudo pacman -S obs-studio python-websocket-client procps-ng xdg-utils

The Python executable set in settings must be 3.10 or newer and have websocket-client installed; requirements.txt pins the tested version, 1.9.2. In OBS, enable Tools → WebSocket Server Settings → Enable WebSocket server. You can keep authentication on: the helper reads the port and password from OBS's local config.

The obs command must be on PATH. A running OBS is detected by the process name obs, or .obs-wrapped on NixOS.

Usage

Enable the plugin, then add ayagmar/obs-control:status to your bar. Left click opens the controls; right click opens plugin settings. Add ayagmar/obs-control:quick-controls to the control-center shortcuts for the same panel. The controller service polls OBS while the plugin is enabled.

noctalia msg panel-toggle ayagmar/obs-control:controls

The panel controls recording, replay buffer and streaming, saves replays, launches OBS and opens the recording folder. Starting an output launches OBS minimized if it is not running. Saving a replay requires an active replay buffer.

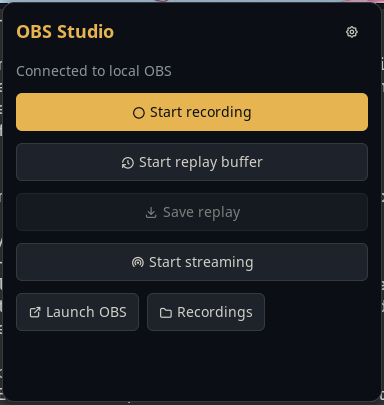

OBS Control connected to local OBS

Settings

Setting Type Default Description
python_executable string python3 Python with websocket-client installed. A virtual environment's bin/python works.
poll_interval_ms int 2500 How often to poll OBS, in milliseconds, from 1000 to 30000.
auto_close_managed_obs bool true After you stop an output, close OBS if the plugin started it and recording, replay, streaming and virtual camera are all off.
open_videos_after_stop bool true Open the folder of a finished recording with xdg-open.
show_when_idle bool true Keep the widget visible when nothing is recording or streaming.
show_elapsed_in_bar bool false Add the recording duration to the bar label.

IPC

noctalia msg plugin ayagmar/obs-control:controller all toggle-record
noctalia msg plugin ayagmar/obs-control:controller all toggle-replay
noctalia msg plugin ayagmar/obs-control:controller all save-replay
noctalia msg plugin ayagmar/obs-control:controller all toggle-stream
noctalia msg plugin ayagmar/obs-control:controller all launch
noctalia msg plugin ayagmar/obs-control:controller all open-videos
noctalia msg plugin ayagmar/obs-control:controller all status

launch starts OBS but never closes it automatically, unlike an OBS started by a toggle. An action sent while a status poll is running waits for the poll to finish. The bar label shows REC, REPLAY and LIVE for active outputs. Errors appear in the panel and in action notifications.

Notes

The Python helper connects only to 127.0.0.1 with OBS WebSocket protocol v5 and contacts no remote service. The password stays inside the helper: it is never passed as an argument or included in status output. The helper reads $XDG_CONFIG_HOME/obs-studio/plugin_config/obs-websocket/config.json and /proc/<pid>/stat.

The helper writes the PID of an OBS it started, and an action lock, to $XDG_RUNTIME_DIR/noctalia-obs-control/. Before sending SIGTERM it checks the process start time, so a reused PID never gets closed. The plugin never kills an OBS it did not start. Disabling the plugin or restarting Noctalia leaves OBS and active outputs running.

The helper runs pgrep to detect OBS, obs --minimize-to-tray to start it, and xdg-open for the recording folder, which it asks OBS for. Nothing is downloaded at runtime. The tooltip always shows elapsed recording time.

Versions

VersionPlugin APIUpdated
v1.0.1 latest24Nov 1, 2026

Older versions stay installable on a Noctalia release whose plugin API is below the latest version's.
