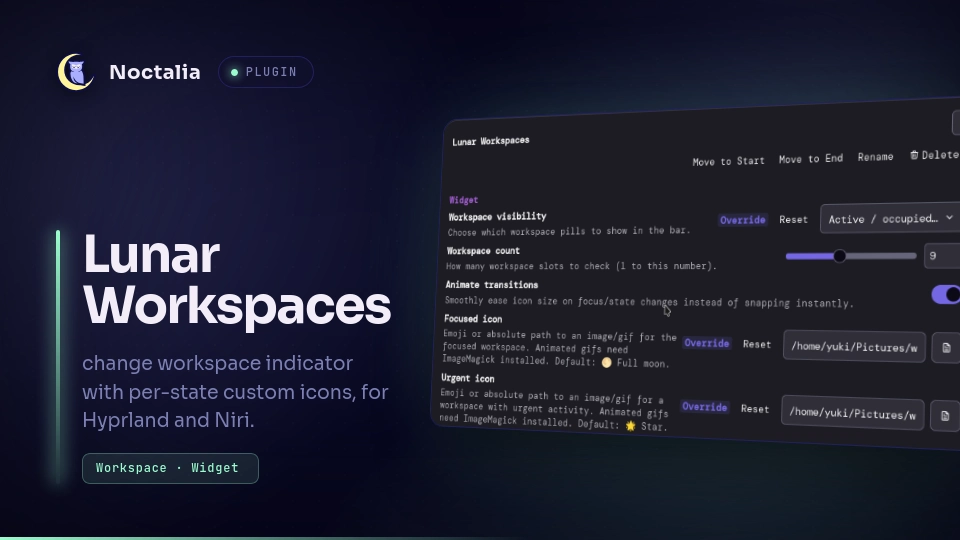

Lunar Workspaces (Noctalia v5)

A workspace indicator widget for Noctalia with moon-phase-style icons for focused, urgent, occupied, and empty workspaces. Click a workspace to jump to it, scroll the widget to step through workspaces. Supports Hyprland and Niri, auto-detected.

Port from Lunar Workspaces V4.

Plugin

Field	Value
ID	yuki/lunar-workspaces
Entries	Bar widget: lunar_workspaces; service: workspace-state

• Service workspace-state runs in the background: watches the compositor and publishes workspace state.
• Widget lunar_workspaces is the bar widget.

Features

• 🌕 🌟 🌗 🌙 Separate icon, size, and pill color per workspace state (focused / urgent / occupied / empty): emoji, static image, or animated gif
• Optional smooth size-easing animation on focus/state changes (enable_animation)
• Fill or ghost pill style per state, with per-state custom colors (palette role, role with alpha like primary/0.6, or hex like #rrggbbaa)
• Click-to-switch and scroll-to-switch workspaces
• Three display modes: show all workspaces, only active/occupied ones, or all occupied plus one upcoming empty slot
• Per-monitor focus tracking: on a multi-monitor setup, each monitor's own active workspace is shown as focused, not just the single globally input-focused one
• Live updates via compositor IPC (Hyprland socket / Niri event stream), with a periodic resync as a fallback

Usage

Add the widget to a bar in Noctalia's Add-widget picker, or add it to your bar config manually:

type = "yuki/lunar-workspaces:lunar_workspaces"

Click a workspace pill to switch to it. Scroll over the widget to step to the next/previous visible workspace.

Requirements

• Noctalia 5.0.0+ with plugin support (plugin_api 12+)
• Hyprland or Niri
• socat, optional. Used for instant Hyprland IPC updates; without it the widget still works via periodic polling (60s resync plus event-driven refresh on Niri, which doesn't need socat).
• ImageMagick (magick, or the legacy convert/identify pair), optional, only needed if an icon setting points at a .gif. Without it, a gif icon still renders, just as a static first frame instead of animating.

Installation

mkdir -p ~/.local/share/noctalia/plugins/lunar-workspaces
cp -r ./* ~/.local/share/noctalia/plugins/lunar-workspaces/

Enable the plugin:

noctalia msg plugins list                          # confirm it's discovered
noctalia msg plugins enable yuki/lunar-workspaces

Then add the Lunar Workspaces widget from Noctalia's Add-widget picker, or add it to your bar config manually (see Usage above).

Settings

Setting	Type	Default	Description
Compositor	select	auto	auto, hyprland, or niri
Workspace visibility	select	all	all, active_occupied, or once (occupied + one upcoming empty slot)
Workspace count	int (1-20)	9	How many workspace slots to check
Animate transitions	bool	true	Smoothly ease icon size on focus/state changes instead of snapping instantly
Focused / Urgent / Occupied / Empty icon	file	🌕 / 🌟 / 🌗 / 🌙	Emoji, or an absolute path to an image or gif. Animated gifs need ImageMagick installed
Focused / Urgent / Occupied / Empty size	int (8-64)	22 / 20 / 18 / 16	Icon size in pixels per state
Focused / Urgent / Occupied / Empty pill background	select	fill / fill / ghost / ghost	fill (colored pill behind the icon) or ghost (bare icon, no background at all)
Focused / Urgent / Occupied / Empty pill color	color	primary / error / secondary / surface_variant	Fill color, used when the matching pill background is fill. Accepts a palette role, a role with alpha (primary/0.6), or a hex color (#rrggbbaa)

IPC

• Compositor: shells out to hyprctl -j workspaces/activeworkspace/clients/monitors on Hyprland, or niri msg --json workspaces/windows/event-stream on Niri, to build workspace state. No other IPC surface is used.

Notes

• Process: spawns hyprctl/niri msg on a timer and on compositor events, socat for the Hyprland event socket (optional), and magick/convert/identify once per distinct gif icon file (optional, only when a .gif is configured).
• Filesystem: when an icon is set to a .gif, its frames are extracted once to pluginDataDir()/gif-frames/<hash>-<mtime>/ and cached there indefinitely (not automatically pruned) so re-extraction isn't needed on every reload. No other files are read or written.
• Network: none.
• Privacy: window class/title text is read from the compositor (to build a per-workspace window list for a possible future tooltip feature; not yet surfaced in the widget itself) and truncated to 24 characters. It stays in local in-memory plugin state and is never written to disk or sent anywhere.

Development

cd ~/.local/share/noctalia/plugins/lunar-workspaces
python3 -c "import tomllib; tomllib.load(open('plugin.toml','rb'))"  # validate manifest

Run Noctalia from a terminal (not autostarted) while testing so noctalia.log(...) output and Luau errors print live. .luau file edits hot-reload; plugin.toml changes require a config reload (noctalia msg config-reload) or restart.

License

This project is licensed under the MIT License.
