Keychron Battery

Shows the battery level of Keychron mice in the bar and sends a notification when it runs low. The entry uses the bar's own colors and turns red at the notification threshold.

Plugin

Field	Value
ID	dmopp/keychron-battery
Entries	Bar widget: keychron-battery; panel: panel; service: service

Requirements

• upower on PATH. The plugin reads all battery data from upower --dump.
• For a mouse on a Keychron receiver or USB cable: the keychron-battery-dkms kernel module. Keychron mice do not report their battery over standard HID; the module queries it and exposes it as /sys/class/power_supply/keychron_mouse, which UPower picks up. Check it with cat /sys/class/power_supply/keychron_mouse/capacity.
• Keychron mice over Bluetooth work without the module (standard BLE battery service).

Usage

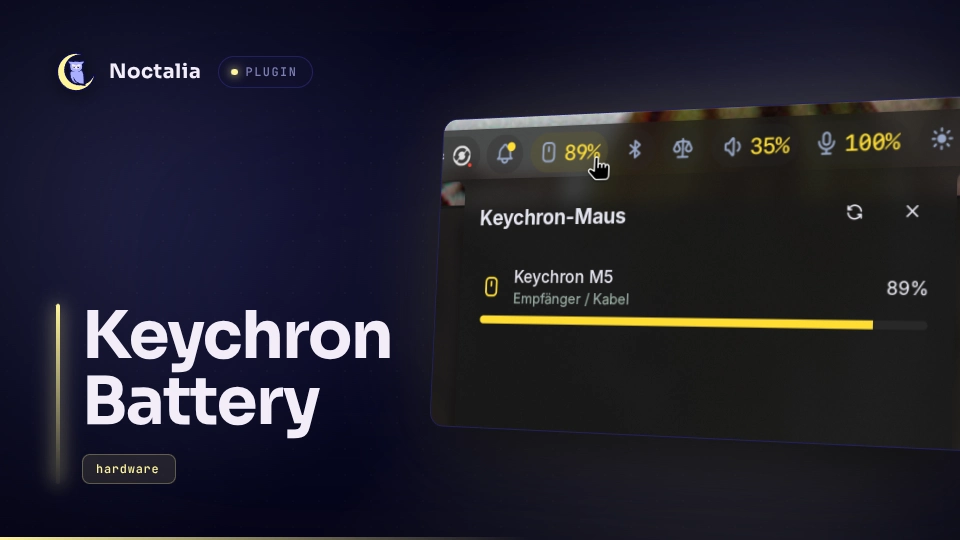

Add the bar widget dmopp/keychron-battery:keychron-battery to a bar in Settings. It shows a mouse icon and the battery percentage, and hides itself while no Keychron mouse is found. Hover it for name and connection; left-click opens the panel with a battery bar per mouse and a refresh button.

noctalia msg panel-toggle dmopp/keychron-battery:panel

When the level drops to the notification threshold, the service sends one notification, and an urgent one at the critical threshold. Both re-arm after the mouse charges or climbs back 5% above the threshold.

Settings

Setting	Type	Default	Description
low_threshold	int	20	Percent at which a notification is sent and the bar entry turns red (5–50).
critical_threshold	int	10	Percent for a second, urgent notification (1–30).
notify	bool	true	Send the low and critical notifications.
poll_interval	int	60	Seconds between UPower reads (10–900). The kernel module itself refreshes every 5 minutes.
mouse_name	string	empty	Name shown in tooltip, panel and notifications. Empty uses the UPower model name.

IPC

Re-read UPower immediately:

noctalia msg plugin dmopp/keychron-battery:service all refresh

Notes

• The plugin only spawns upower --dump. It makes no network calls and writes no files.
• Supported over receiver or cable: whatever the kernel module binds to, currently the Ultra-Link 8K receiver (3434:d028) and the wired M5 (3434:d048). The module always reports the model "Keychron M5" and the state "discharging", so set mouse_name for another model and expect no charging indicator there.
• Keychron keyboards are not shown: over the Keychron Link 2.4G receiver their firmware does not report a battery level at all.
