Hyprland Visual Editor

Visually edit Hyprland animations, borders and shaders from a Noctalia panel, without ever touching your hyprland.lua. A Luau port of XimoCP's v4 plugin for Noctalia v5.

⚠️ Lua config required. This plugin targets Hyprland's Lua configuration (hyprland.lua). It does not work with the legacy hyprlang .conf format — HVE generates Lua (hl.animation, hl.config) and loads it via dofile.

Plugin

Field	Value
ID	linux-fertxo/hyprland-visual-editor
Entries	Bar widget: hve-trigger · panel: hve-panel · service: hve-scanner

Requirements

• hyprland running a Lua config (hyprland.lua) — not the legacy hyprlang .conf format (HVE emits hl.animation / hl.config and loads via dofile).
• bash and python on PATH (the preset converter and assembler are shell scripts that call python3).

Usage

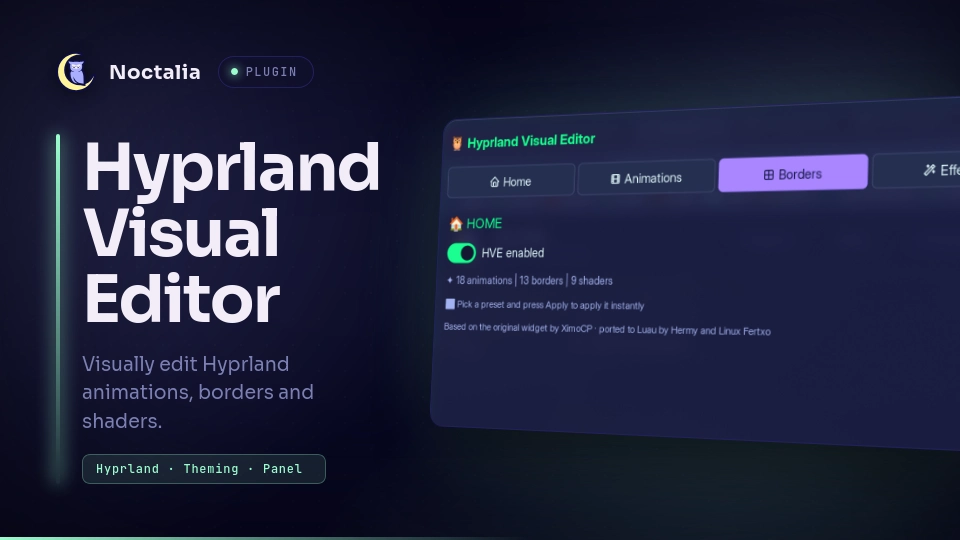

1. Add the Hyprland Visual Editor widget to your bar.
2. Click the bar widget to open the panel. Pick a preset (Animations, Borders or Effects) and press Apply — HVE applies it and reloads Hyprland instantly.

On first enable, HVE appends the overlay loader to the end of your ~/.config/hypr/hyprland.lua (idempotent, marked with a HYPRLAND VISUAL EDITOR comment). If you prefer to do it manually, the line is:

pcall(function() dofile(os.getenv("HOME") .. "/.cache/noctalia/HVE/overlay.lua") end)

The panel can also be toggled directly:

noctalia msg panel-toggle linux-fertxo/hyprland-visual-editor:hve-panel

Settings

Setting	Type	Default	Description
is_system_active	bool	false	Master switch that enables effects.
active_anim_file	string	""	Currently active animation preset.
active_border_file	string	""	Currently active border preset.
active_shader_file	string	""	Currently active shader preset.

IPC

noctalia msg panel-toggle linux-fertxo/hyprland-visual-editor:hve-panel

Notes

• HVE writes its generated overlay to ~/.cache/noctalia/HVE/overlay.lua and reloads Hyprland with hyprctl reload after every apply. Your hyprland.lua is never modified except for the one-time loader line above.
• Ships 18 animation presets, 13 border presets and 9 GLSL shaders. Add your own by dropping a .conf/.frag into the matching assets/ folder with the @Title / @Desc / @Icon / @Color / @Tag metadata header.
• Shaders are applied as absolute-path screen_shader entries; re-apply the shader after moving the plugin directory.
• UI is localized: English (en), Spanish (es) and Catalan (ca).

Credits

• Architecture & core: XimoCP (Noctalia v4, QML)
• Luau port (v5): Hermy & linux-fertxo
