Formula 1

Next-race countdown in the bar, and a panel with the session schedule in local time, the circuit outline, the starting grid, live timing, the last race result and both championships.

Screenshots

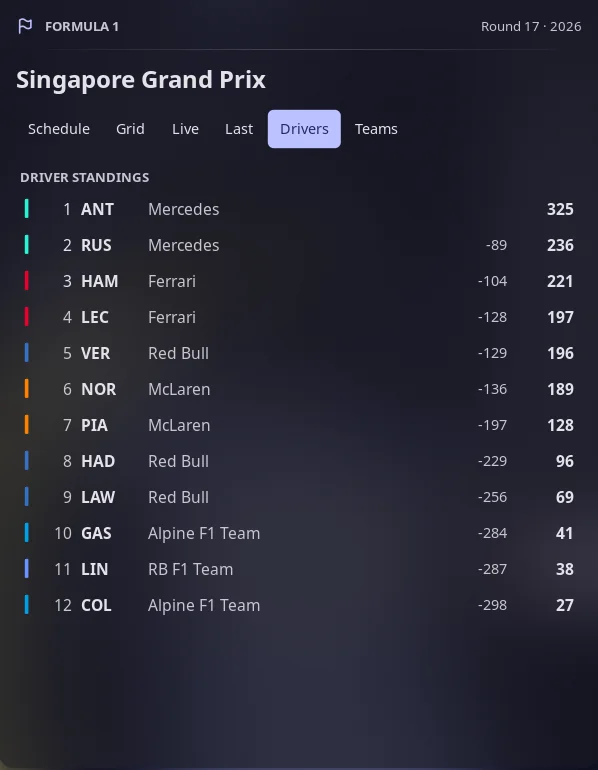

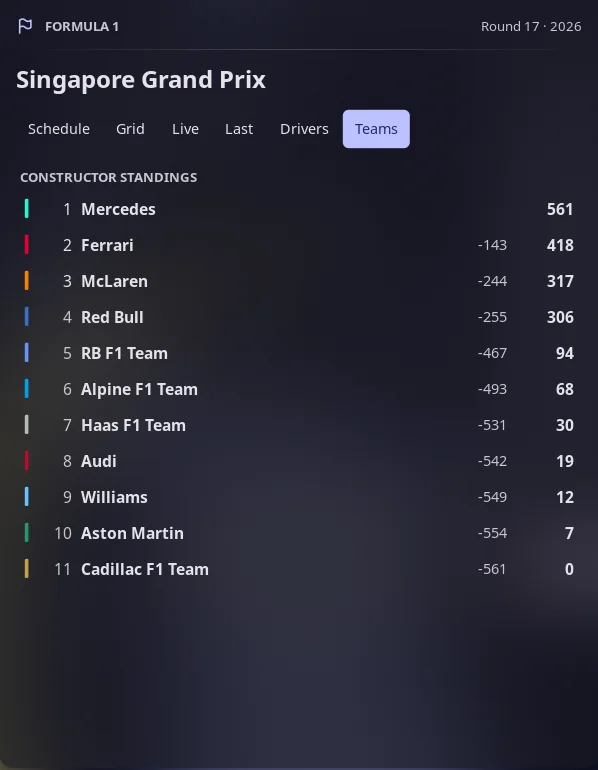

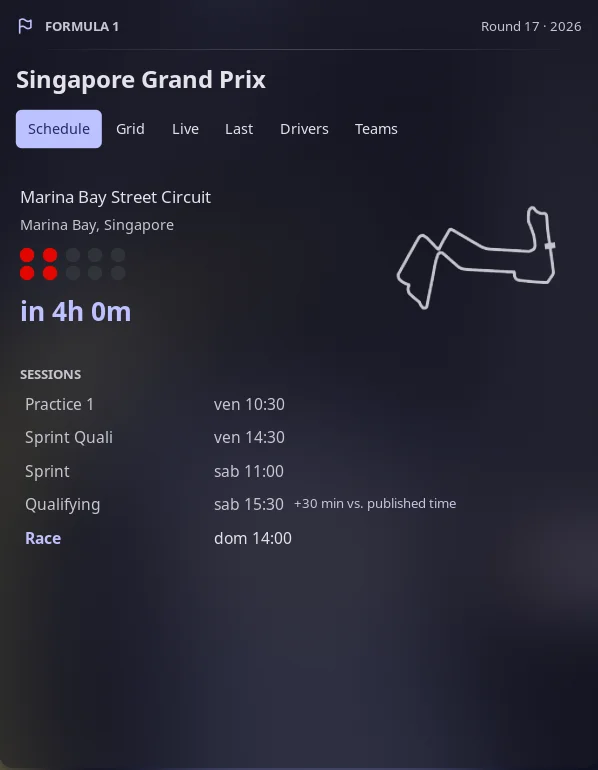

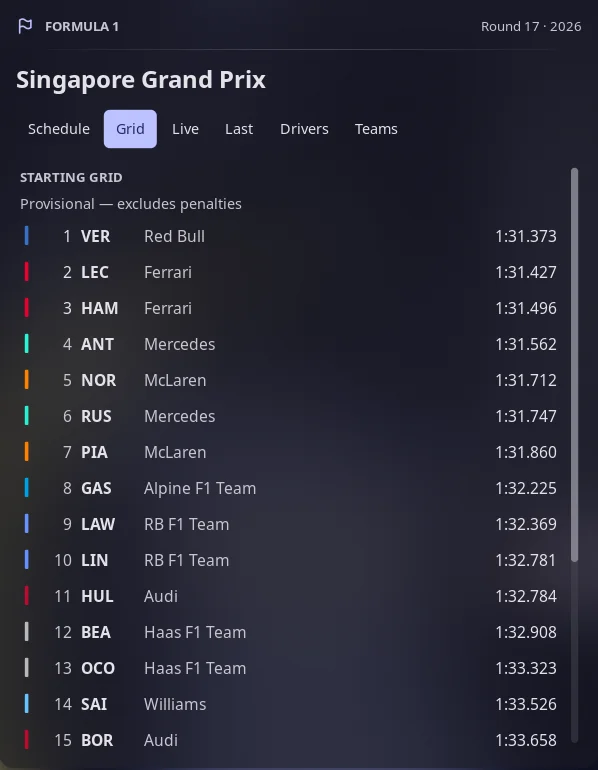

Schedule with the circuit and the start lights, the starting grid before the race, driver and team standings.

Plugin

Field	Value
ID	gcap0n1/f1
Entries	Bar widget: bar; panel: panel; service: poller

Requirements

Install xdg-open (from xdg-utils) on PATH. It is only used to open a Wikipedia page when you click a driver, team or race row.

Install curl only if you turn on the experimental F1 live-timing stream below. Everything else goes through noctalia.http.

Live timing sources

The Live tab has two possible sources, chosen with the live_source setting.

OpenF1 (default). OpenF1 serves real-time data, and during a session the whole API, only to subscribers (see openf1.org). Without an account the Live tab says so and everything else keeps working. To enable it, export your credentials in the environment Noctalia runs in:

OPENF1_USERNAME=you@example.com
OPENF1_PASSWORD=your-password

They are read with noctalia.getenv, exchanged for a one-hour bearer token at https://api.openf1.org/token, and never written to the plugin settings or to disk. This login path could not be tested without a subscription. This source shows the running order and the track flag.

F1 live-timing stream (experimental, off by default). Reads the stream behind F1's own live-timing page, with no account. During qualifying it shows the part (Q1, Q2 or Q3) and the time left, each driver's best time and gap, who is in the elimination zone and who is out; in a race, the gaps to the leader. It needs curl, because the server hands out a load balancer cookie that noctalia.http cannot read back, so a small script (f1-live.sh) keeps it. This stream is unofficial and undocumented. It may stop working, change format, or be restricted by F1 at any time, and F1's terms may not allow automated use of it: turn it on only if you accept that. It connects only from 15 minutes before a session until 3 hours after it.

Usage

Add the bar widget gcap0n1/f1:bar from Noctalia's widget picker, or by hand:

[widget.f1]
type = "gcap0n1/f1:bar"

[bar.default]
end = [ "f1", "tray" ]

Left click opens the panel, right click refreshes the data, and middle click opens the widget's settings. The pill shows the time left to the race (or to the next session) and turns to the accent colour with LIVE while a session is on.

Open the panel from a script or a compositor binding:

noctalia msg panel-toggle gcap0n1/f1:panel

Tabs: Schedule, Grid (after qualifying until the race), Live, Last, Drivers and Teams. With the panel focused, Left and Right change tab, r refreshes and Escape closes it. A table row with a link opens its Wikipedia page.

Session times

Times follow delays by themselves. The schedule comes from Jolpica, which publishes planned times only, so once a minute during a race weekend the plugin also reads the start time of the current session from F1's own live-timing feed (SessionInfo.json, the same one F1's apps use) and shows that one instead. A session that was moved by 30 minutes because of rain shows the new time with a "+30 min vs. published time" note, in the panel, the bar countdown and the live window.

If that feed is ever unavailable you can correct a time by hand. The correction wins over both sources until the round changes:

noctalia msg plugin gcap0n1/f1:poller all delay "quali 30"

Settings

Edited under Settings → Plugins.

Setting	Type	Default	Description
time_format	select	24h	24-hour or 12-hour session times.
countdown_target	select	race	Whether the pill counts down to the race or to the next session.
default_tab	select	schedule	Tab the panel opens on. Live and Grid take over when they apply.
team_colors	bool	true	Coloured chip beside each driver and team.
animations	bool	true	Fade in the circuit and run the start lights (red until the race starts, green after) when the Schedule tab opens.
favorite_driver	string	empty	Three-letter code, for example VER, shown in the accent colour.
favorite_team	string	empty	Team id as the data source writes it, for example ferrari.
notify_race	bool	false	One desktop notification before lights out.
notify_lead_min	int	10	Minutes before the race for that notification, 0 to 120.
live_source	select	openf1	openf1 or f1_feed (experimental, see above).
debug_force_tabs	bool	false	Advanced. Show Grid and Live outside a race weekend, using the last session.

IPC

# Refresh everything now (also bound to right click on the widget)
noctalia msg plugin gcap0n1/f1:poller all refresh

# Correct a session start by N minutes (-720..720); 0 undoes that session
noctalia msg plugin gcap0n1/f1:poller all delay "<fp1|fp2|fp3|sprint_quali|sprint|quali|race> <minutes>"

# Drop every manual correction
noctalia msg plugin gcap0n1/f1:poller all delay_clear

# Select a tab of an open panel
noctalia msg plugin gcap0n1/f1:panel all tab drivers

Notes

Network access, all HTTPS GET without credentials unless you set the OpenF1 variables above:

• livetiming.formula1.com: static/SessionInfo.json, a few hundred bytes, once a minute from 3 hours before the first session of the weekend until 4 hours after the race. It is an unofficial, undocumented feed that F1's timing apps use; if its format changes, times simply fall back to the published ones.
• api.jolpi.ca (Jolpica-F1): next race, driver and constructor standings, last result and qualifying. The schedule refreshes every 6 hours, standings every 3 hours.
• livetiming.formula1.com/signalrcore: only with live_source = f1_feed, through curl (see below), from 15 minutes before a session until 3 hours after.
• api.openf1.org: drivers, positions and race control, only from 15 minutes before a session until 3 hours after, every 15 seconds. POST /token only when credentials are set.

Files: the plugin writes small SVG files of the circuit outline into its own data directory (noctalia.pluginDataDir()), one per circuit and colour. It reads tracks.txt from its own directory. It spawns xdg-open only when you click a link, and only for https links to Wikipedia. With live_source = f1_feed it also runs sh f1-live.sh <seconds> (a script in the plugin directory) which runs curl against livetiming.formula1.com, keeps a cookie jar in a temporary file, and removes it when it ends.

Everything fetched is length-limited and stripped of control and bidirectional characters before it is shown.

tracks.txt is data, not code. tools/build-tracks.py rebuilds it from bacinger/f1-circuits.

Jolpica-F1 data is published under CC BY-NC-SA 4.0 for non-commercial use, see its terms. This is an unofficial project, not associated with Formula 1 companies. F1, FORMULA ONE and related marks belong to their owners.

Credits

Ported from Snackwrap/omarchy-f1 by Robert (leafbox), MIT. Circuit outlines from bacinger/f1-circuits by Tomislav Bacinger, MIT. Live data from OpenF1.
