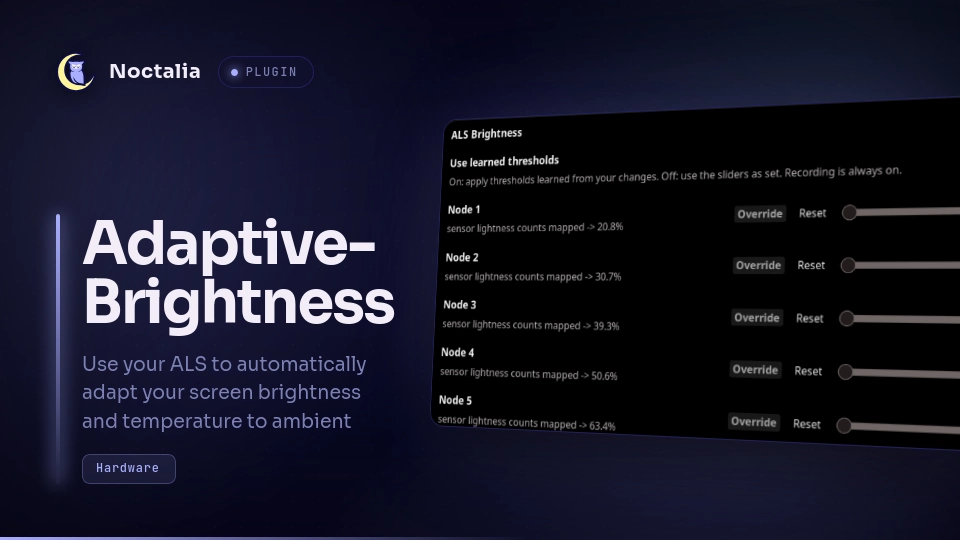

ALS Brightness

Ambient-light adaptive panel brightness for Linux, implemented as a Noctalia plugin service. The panel follows the light in the room — and the moment you touch the brightness keys, it gets out of the way, because a manual adjustment is treated as intent rather than as an error to be corrected. An opt-in second feature drives the keyboard backlight the same way: off in the light, on at its dark level in the dark.

Built for an ASUS Zenbook S 16 UM5606WA (AMD SFH ambient light sensor, Radeon 890M panel, niri + Noctalia), but nothing is specific to that chassis except the defaults.

Plugin

Field	Value
ID	zhangdm/als-brightness
Entries	Service: als
Plugin API level	24

The plugin is a single headless service (als, entry file service.luau): it has no bar widget, panel or launcher prefix. Everything is driven by its settings and a small number of IPC events.

Requirements

• Noctalia (the plugin's declared dependency, noctalia) at plugin API 24 or newer — Noctalia v5.0.0-beta.9+. The plugin shells out to noctalia msg (with an argv table, no shell interpolation) for status, brightness-set, keyboard-backlight-set and config-reload; the keyboard-backlight-set IPC the keyboard feature drives arrived in v5.0.0-beta.4. The idle handshake events described under Usage flow the other way — your idle policy sends them to the plugin.
• Required for the panel feature: an ambient light sensor (/sys/bus/iio/devices/iio:deviceN with in_illuminance_raw or in_illuminance_input) and a backlight device under /sys/class/backlight. If either is missing — or your backlight/connector setting names hardware this machine does not have — the plugin stays idle, shows one error notification, and writes nothing to the panel.
• Optional: any keyboard-backlight LED under /sys/class/leds (any *kbd_backlight* name — asus::, tpacpi::, dell:: …) for the keyboard feature, and the colour-temp sensor, DPMS node, lid switch and HOME for colour temperature and guards. Each optional piece drops out with a log line if absent (an unavailable guard passes rather than blocks adaptation); everything else keeps working.
• The idle handshake is required, not optional: your idle policy must emit the handshake events (see Usage). Without it the adapter cannot tell the idle dim apart from you lowering the brightness, and will either fight the dim or record it as your preference.
• Discovery runs once at start. After plugging in hardware or changing the connector/backlight settings, toggle the plugin off and on to re-probe.

Usage

Install and enable it as a plugin source, then enable the plugin itself:

git clone https://github.com/ZhangDM-520/noctalia-ambient-brightness
noctalia msg plugins source add als-brightness path ~/noctalia-ambient-brightness
noctalia msg plugins enable zhangdm/als-brightness

From then on the panel follows the light in the room: the service polls the sensor and drives the panel brightness inside the band you configured. The moment you change brightness by hand, the adapter treats that as your preference and backs off instead of fighting you.

Two things must be configured outside the plugin.

The idle handshake is required

Your idle policy must send idle-engaged when the idle dim starts and idle-released after brightness is restored — the dim behaviour in nri-idle's ~/.config/nri-idle/idle.toml, each event delivered with noctalia msg plugin zhangdm/als-brightness:als all idle-engaged (respectively idle-released). Order matters: engage before dimming, release after restoring.

This is not optional. Without the handshake the adapter cannot tell the idle dim apart from you lowering the brightness by hand, and will either fight the dim or record it as your preference. Nothing is learned while the session is idle.

Silence the OSDs

An adapter that changes brightness (or keyboard backlight) continuously pops an OSD on every adaptation. Add two lines to ~/.local/state/noctalia/settings.toml — see Making it seamless: silencing the OSDs under Notes for the full story, including why the plugin cannot do it for you.

Settings are configured in Noctalia's Settings UI, or via ~/.local/state/noctalia/settings.toml under [plugin_settings."zhangdm/als-brightness"].

The panel feature works out of the box. The keyboard backlight stays yours until you turn on keyboard_backlight; from then on it follows the room as described in The keyboard backlight.

Settings

Configured in Noctalia's Settings UI, or via ~/.local/state/noctalia/settings.toml under [plugin_settings."zhangdm/als-brightness"]. Rows appear in the order below.

Setting	Type	Default	Description
learning_profile	bool	false	The head of the settings page. On: nudge the sliders below toward the ambient you adjust brightness in. Off: the sliders are used exactly as you set them. Either way the plugin keeps recording.
keyboard_backlight	bool	false	Opt-in master switch for the keyboard feature. On: the keyboard backlight follows the room (off above the threshold, on at the dark level below). Off: the keyboard backlight is left alone entirely.
kbd_anchor_percent	int	40	The panel brightness percent (window 25–75) that defines the keyboard threshold: the threshold is the ambient level where the live panel curve reaches this percent, so it tracks your sliders and learning instead of a fixed lux count.
kbd_buffer_percent	int	15	Hysteresis half-width as a fraction of the threshold (15 ⇒ the band is threshold × 0.85 … × 1.15): how far ambient must travel past the threshold before the keyboard changes state again.
kbd_dark_percent	int	0	The level (0–100) the keyboard runs at in the dark. Zero = automatic: the lowest non-off level the LED can hold — the host IPC is integer-only, so on a small max_brightness the first lit level sits well above 1 %.
thr_brightness_01 … thr_brightness_10	int	0, 1, 3, 10, 33, 61, 560, 1680, 4800, 14200	One slider per curve node. Each chooses the ambient reading (raw sensor counts) where that node takes over; what the node outputs (20.8 % … 100 %) is fixed. Each window is centered on its default, so the value shown at rest sits mid-track.
thr_temperature_01 … thr_temperature_10	int	2000 … 6000	The panel-warmth thresholds, same idea. Shown only while colortemp is on.
show_advanced	bool	false	Advanced maps. On: reveal the two raw map editors below; Off: hidden.
curve_brightness	string_map	10 nodes	Advanced (behind show_advanced). Power-user override: one row per node, reading:target. Edit it and it wins over the sliders.
curve_temperature	string_map	10 nodes	Advanced. Same shape.
enabled	bool	true	Master switch. While off the panel is left alone entirely.
connector	string	"" (auto)	Output to drive; empty = the focused output found at start. Restart to apply.
backlight	string	"" (auto)	Backlight device under /sys/class/backlight; validated at start. Restart to apply.
min_percent	string	"15"	Hard floor (percent), so a dark or occluded reading cannot blank the screen.
max_percent	string	"100"	Hard ceiling (percent).
colortemp	bool	false	Also warm the panel toward the ambient colour temperature. Warning: this forces night light on and rewrites temperature_night.

The curve

Each curve is ten nodes. A node is a pair — the ambient reading where it takes over, and the output it produces there — and the two halves are edited in different places: the outputs are fixed (20.8 %, 30.7 % … 100 % for brightness; 5100 K … 6500 K for panel warmth) and one slider per node chooses its threshold.

The full node list, one setting each:

Setting key	Default	Fixed output
thr_brightness_01	1	Node 1 threshold in raw sensor counts; node outputs 20.8 % brightness.
thr_brightness_02	4	Node 2 threshold; outputs 30.7 %.
thr_brightness_03	10	Node 3 threshold; outputs 39.3 %.
thr_brightness_04	30	Node 4 threshold; outputs 50.6 %.
thr_brightness_05	100	Node 5 threshold; outputs 63.4 %.
thr_brightness_06	185	Node 6 threshold; outputs 70 %.
thr_brightness_07	400	Node 7 threshold; outputs 78.3 %.
thr_brightness_08	1000	Node 8 threshold; outputs 88.3 %.
thr_brightness_09	2200	Node 9 threshold; outputs 96.8 %.
thr_brightness_10	16384	Node 10 threshold (the sensor ceiling); outputs 100 %.
thr_temperature_01	2500	Temperature node 1 threshold in ambient kelvin; panel output 5100 K.
thr_temperature_02	2700	Node 2 threshold; panel 5240 K.
thr_temperature_03	3000	Node 3 threshold; panel 5380 K.
thr_temperature_04	3500	Node 4 threshold; panel 5520 K.
thr_temperature_05	4000	Node 5 threshold; panel 5660 K.
thr_temperature_06	4500	Node 6 threshold; panel 5800 K.
thr_temperature_07	5000	Node 7 threshold; panel 5940 K.
thr_temperature_08	5500	Node 8 threshold; panel 6080 K.
thr_temperature_09	6000	Node 9 threshold; panel 6220 K.
thr_temperature_10	6500	Node 10 threshold; panel 6500 K.

In the settings rows the title is just the node id (Temp node 8) and the description states what it maps to (sensor ambient temp mapped -> 6080K — row 8's fixed output, FIXED_TEMPERATURE_Y[8] in curve.luau). The temperature curve compiles four hidden anchors (two below row 1, two above row 10, replicating floor and ceiling) so PCHIP keeps its flat tangent at both ends: ten rows in the UI, fourteen under the hood.

thr_brightness_01 … thr_brightness_10 are those sliders, low node first. As ambient light rises past a slider's value, that node takes over from the one before it. Sliding a node past its neighbour simply swaps two steps of the curve — the pair travels together, so the shape is never in question — and two sliders landing on the same reading are nudged one count apart (with a log line) so the interpolation always has something to interpolate.

Because each slider is its own setting, editing one in the Settings UI commits one value and touches nothing else.

The maps (advanced)

curve_brightness and curve_temperature are still there, behind the Advanced maps toggle (show_advanced, default off), as a power-user escape hatch: one row per node, key the reading, value the target.

[plugin_settings."zhangdm/als-brightness".curve_brightness]
"00001" = "1:30.7"
"00033" = "33:63.4"
"00061" = "61:70"
"14200" = "14200:100"

A map wins over the sliders exactly when it has been edited — judged by comparing its parsed nodes against the shipped defaults, so re-ordering rows or retyping whitespace does not count. As long as it matches the defaults the sliders are the curve; the moment you change a node (or add or drop one) the map becomes the curve and learning is suspended, because two writers fighting over one curve is how a profile goes bad. Delete the row you added to hand the curve back to the sliders.

Two habits make map editing pleasant:

• Keys are zero-padded ("00061", not "61"). The editor sorts rows by key as text, so the padding is what keeps the curve reading in numeric order down the page. A row you add with an unpadded key still works — it just sorts to the bottom.
• The value can be either the target alone or the whole node. "70" takes its reading from the key; "185:70" carries its own. The value always wins, so a key that has fallen out of step can never move a node you typed — at worst the row sorts somewhere unexpected, and the plugin logs a line saying so.

Values between nodes are joined with a monotone cubic (PCHIP), which is guaranteed not to overshoot the two nodes it sits between — so however you move a node, the panel stays inside the band you drew. A # starts a comment and blank cells are ignored, so a half-edited map cannot break anything.

Readings are raw sensor counts, not lux. The sensor's absolute calibration is unverified (a phone torch at point-blank reads only 1665 lux), so the curve is defined against counts you can read directly:

cat /sys/bus/iio/devices/iio:device*/in_illuminance_raw

The ten shipped node positions are the maintainer's hand-tuned values (2026-10) — node 6 sits at 61 counts → 70 % — which is why a fresh install behaves sensibly.

The learned profile

With learning_profile on, learning nudges the threshold sliders, never the outputs. When you set brightness by hand, the change targets the node whose fixed output is nearest the level you chose, and that node's threshold eases (EMA, α = 0.125) toward the ambient light you were in — so the curve drifts to match where you actually want each level, while its shape stays the one drawn above. Two observations move anything at all; a node you have never been near stays exactly where you slid it.

The toggle gates application, never recording. The plugin always records, so switching it on shows a profile that has been developing rather than an empty one. That is what makes it useful while working out an initial curve. Nothing is learned while the session is idle — the 30 % idle dim is policy, not a preference.

The profile lives in profile.json in the plugin's data directory. The plugin cannot write its own settings — the Noctalia host does not permit it — so the learned thresholds apply at runtime and are not written back to the sliders; a slider you move yourself is the seed learning starts from. (While a curve_* map is edited and winning, learning is suspended entirely.)

The keyboard backlight

With keyboard_backlight on, the keyboard is two states driven by the same ambient reading as the panel: above the threshold the backlight is off (0 %); below it the keyboard runs at the dark level (kbd_dark_percent, zero = automatic lowest non-off level). The threshold is curve-anchored: it is the ambient level where your live panel brightness curve reaches kbd_anchor_percent, so moving the brightness sliders — or letting learning drift them — moves the keyboard's dark point with them. A hysteresis band (threshold × (1 ± kbd_buffer_percent/100)) stops edge flicker: ambient must travel past the band edge before the state flips again.

Manual changes win. The Fn keys write the LED directly; the plugin sees the change through the sysfs readback, adopts your level, and holds auto adaptation until ambient crosses the band edge that would have flipped the state — then it releases and adapts on that crossing, never stomping what you just set.

The anchor is exact. The flip lives inside the hysteresis band and nowhere else: kbd_anchor_percent is the panel brightness percent at which the keyboard changes state, full stop. (A learned threshold multiplier used to nudge the threshold out of place — it auto-lit the keyboard at panel ~65% under a 60% anchor and was removed in 0.7.0. A legacy kbd_scale in profile.json is ignored and dropped on the next save.)

IPC

The [[service]] entry (als) consumes the idle-handshake events. Your idle policy and key bindings send them with:

noctalia msg plugin zhangdm/als-brightness:als all <event>

Event	Effect
idle-engaged	The idle dim has engaged: adaptation holds and nothing is recorded (the dim is policy, not a preference).
idle-released	The dim has restored: the session re-baselines from the restored panel value, so the restore is never mistaken for a manual change.
user-adjusted	You changed the brightness by hand (the brightness keys): opens the manual-override window and records the observation for learning. Ignored while the session is idle.

Any other event is logged as unknown and ignored.

Notes

Making it seamless: silencing the OSDs

An adapter that changes brightness continuously will pop Noctalia's OSD every time it adapts, which is not seamless — and every keyboard-backlight write pops the keyboard-backlight OSD the same way. Add this to ~/.local/state/noctalia/settings.toml:

[osd.kinds]
brightness = false
keyboard_backlight = false

This is the only precise fix, and it is why it is in your config rather than in the plugin: every OSD passes through a single gate in OsdOverlay::show() that checks osd.kinds per kind, but a plugin cannot write config. The plugin's only runtime lever, noctalia msg osd-disable, is global — it would also kill your volume, Wi-Fi, Bluetooth and caffeine OSDs. The plugin never toggles the OSD override, and it will not touch your OSD settings on your behalf; the colortemp feature's own splice of this same file (see below) is a deliberate, documented exception.

Two bonuses worth knowing about:

• It silences the OSD for every writer, not just the plugin — so the idle dim at 50 s and the brightnessctl -r restore on resume stop popping one too.
• Noctalia's [osd] cosmetics in settings.toml are known to drive the OSD (the reference machine renders it at bottom_center, not the documented default), so the [osd.kinds] table in the same file is read too.

The cost is the OSD when you press the brightness or keyboard keys yourself: the gate is per-kind, not per-writer, so the two cannot be separated. Brightness is the one setting where the screen is its own feedback, but it is a real trade.

Do not try to dodge the OSD by writing sysfs instead. It cannot work twice over: the backlight brightness file is -rw-r--r-- root root, so a user-space write is not possible at all, and Noctalia watches the file with inotify and fires the same change callback — which pops the same OSD. brightness-set is not the problem; the change callback is, and it fires for every writer.

What the plugin writes and spawns

• profile.json and als-brightness.log in the plugin's data directory (noctalia.pluginDataDir()): the learned profile (panel threshold observations) and the log ring's output.
• The night-light splice: with colortemp on, [nightlight] temperature_night in ~/.local/state/noctalia/settings.toml, edited as text (comments and key order survive) and replaced atomically — written to a settings.toml.als-brightness.tmp scratch file next to it, renamed over the original, then noctalia msg config-reload is run. The file is returned unchanged when nothing changes.
• Short-lived noctalia msg processes: brightness-set, keyboard-backlight-set, config-reload and status, spawned per event or adaptation. Keyboard-backlight writes are UPower-backed (KbdBacklight D-Bus) and rootless, but they set all keyboard backlights the host sees.

Keyboard-backlight limitations

• Several keyboard backlight devices: keyboard-backlight-set sets every keyboard backlight at one percent; devices with different max_brightness therefore land on different raw levels from the same command.
• Large LEDs (max_brightness ≥ 200): the IPC takes integer percents only, so raw level 1 is unreachable (percent 1 already rounds past it) and the lowest reachable level is used.
• Changed hardware needs a restart: discovery runs once at service start — toggle the plugin off and on to re-probe after plugging in an LED or sensor.
