Steam Overlay for Noctalia

⚠️ DEPRECATED — not maintained from Hyprland 0.55+

Hyprland 0.55 deprecated hyprlang (.conf) in favour of Lua (.lua), which changed how hyprctl dispatch is parsed and how popups/xdg surfaces are handled. These changes broke the overlay's window management and the bar widget's context menu, and make the special-workspace overlay approach no longer worthwhile.

This plugin is no longer actively maintained. The final 2.2.0 release includes a best-effort dual-mode dispatch fix and an optional custom Lua layout so it still works on Hyprland 0.55, but no further updates are planned. Use at your own discretion.

Steam overlay plugin for Noctalia/Quickshell with automatic window management using Hyprland special workspace.

Features

• 🎮 Automatic Steam window detection and positioning
• 🖥️ Multi-monitor support with automatic resolution detection
• 📐 Responsive layout: 10% / 60% / 25% split (Friends / Main / Chat)
• 🎯 Centered overlay with 95% screen height
• 🔔 Chat notifications indicator
• ⌨️ Keyboard shortcut support via IPC
• 🎨 Bar widget with Steam status indicator

Installation

1. Copy the plugin to your Noctalia plugins directory:

cp -r steam-overlay ~/.config/noctalia/plugins/

2. Restart Quickshell:

pkill -f "qs.*noctalia" && qs -c noctalia-shell &

Usage

Via Bar Widget

Click the gamepad icon in your top bar to toggle the Steam overlay.

Via Keyboard Shortcut

hyprlang config (~/.config/hypr/hyprland.conf):

bind = SUPER, G, exec, qs -c noctalia-shell ipc call plugin:hyprland-steam-overlay toggle

Lua config (~/.config/hypr/hyprland.lua, Hyprland 0.55+):

hl.bind("SUPER + G", hl.dsp.exec_cmd("qs -c noctalia-shell ipc call plugin:hyprland-steam-overlay toggle"))

Via IPC Command

qs -c noctalia-shell ipc call plugin:hyprland-steam-overlay toggle

How It Works

1. Detection: Automatically detects Steam windows by class and title
2. Workspace: Moves all Steam windows to Hyprland special workspace special:steam
3. Positioning: Arranges windows in a centered layout:
   • Friends List: 10% width (left)
   • Main Steam: 60% width (center)
   • Chat: 25% width (right)
4. Toggle: Shows/hides the special workspace as an overlay

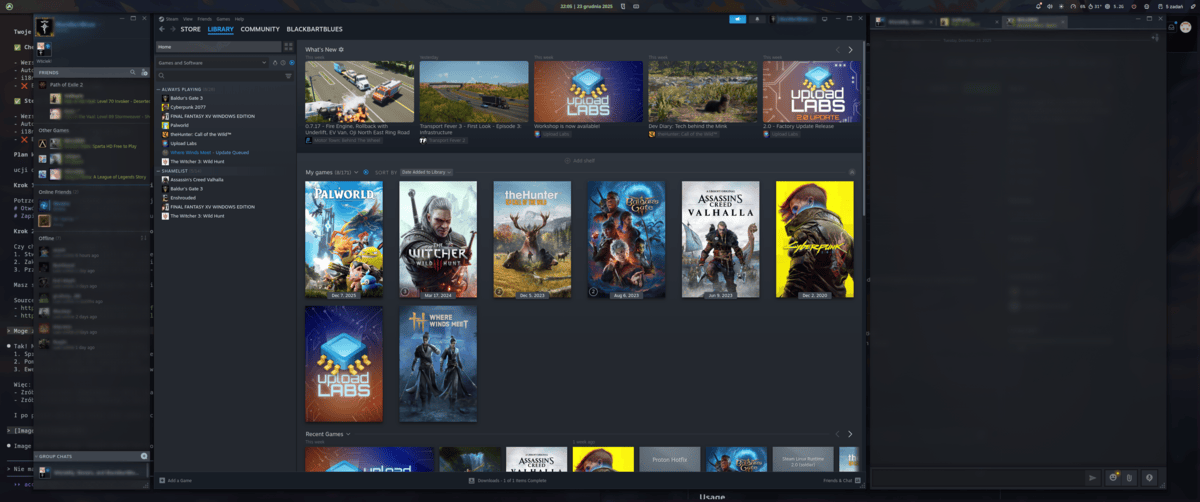

Layout

┌─────────────────────────────────────────┐
│  [Friends]   [   Main Steam   ]  [Chat] │ 95% height
│    10%              60%            25%   │ Centered
└─────────────────────────────────────────┘

Configuration

Default settings in settings.json:

{
  "autoLaunchSteam": true,
  "hasNewMessages": false
}

Hyprland 0.55+ / Lua config

Since Hyprland 0.55, hyprlang (.conf) is deprecated in favour of Lua (.lua). Under a Lua config, hyprctl dispatch is parsed as Lua, so the old classic dispatch syntax errors out — this is what broke the overlay on older plugin versions.

The plugin now auto-detects the active config mode at startup (probing hyprctl dispatch 'hl.dsp.no_op()') and emits the correct syntax for either hyprlang or Lua. No configuration needed — it just works on both.

Optional: custom Hyprland Lua layout

Instead of floating + pixel-positioning the windows, you can let Hyprland's custom layout API (0.55+) tile them. This auto-reflows on window add/remove /resize, with no polling and no pixel math.

1. Copy the layout next to your Lua config:

   cp ~/.config/noctalia/plugins/hyprland-steam-overlay/steam-layout.lua ~/.config/hypr/steam-layout.lua


2. In ~/.config/hypr/hyprland.lua add:

   require("steam-layout")
   hl.workspace_rule({ workspace = "special:steam", layout = "lua:steam" })


   The workspace_rule scopes the layout to only the steam overlay workspace, leaving your normal layout untouched everywhere else.
3. Reload Hyprland, then enable "Use custom Hyprland layout (Lua)" in the plugin settings.

If the setting is enabled but the snippet is missing, Steam windows still open in the overlay workspace using your default layout (graceful fallback). Edit the width ratios at the top of steam-layout.lua to taste.

Requirements

• Noctalia/Quickshell 3.6.0+
• Hyprland compositor (hyprlang or Lua config — both supported)
• Steam
• jq for JSON parsing
• hyprctl for window management
• Custom layout (optional): Hyprland 0.55+ with a Lua config

Files

• Main.qml - Core plugin logic
• BarWidget.qml - Top bar widget with icon
• Panel.qml - Overlay panel (optional)
• manifest.json - Plugin metadata
• settings.json - Plugin settings
• steam-layout.lua - Optional Hyprland custom Lua layout (0.55+)

Author

Created with ❤️ using Claude Code

License

MIT
